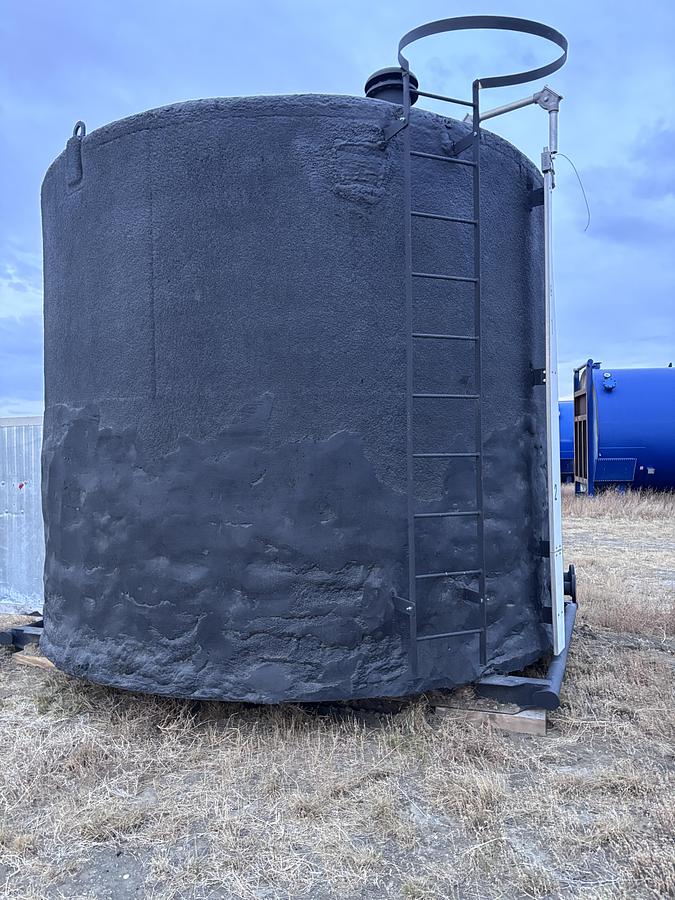

200 BBL Double Wall Tank
Location:Redcliff, Canada
Description
¼” Double Floor, 1/4” Shell, 3/16” Frangible Roof External Spray Foam Insulated 8” API Thief Hatch Aluminum Gaugeboard & Float CataDyne 12,000 BTU/Hr. Flameless Heater Insulated External Galvalume Heat Cabinet Load Out Connection w/Camlock Fitting Interstitial Space Monitoring Level Gauge 24” x 36” Manway Ladder w/Cage Bottom Skid
Specifications
| Manufacturer | Nusco |
| Year | 2006 |
| Condition | Refurbished |

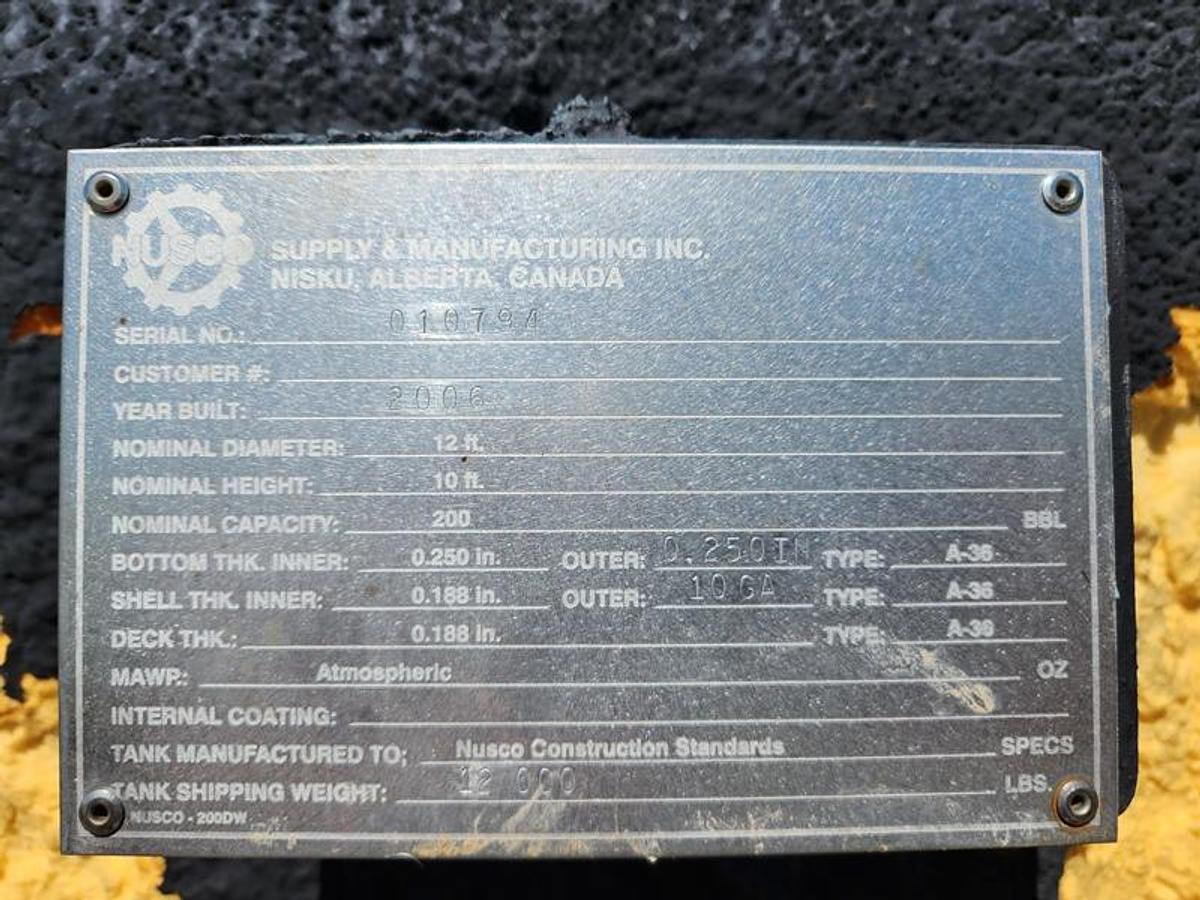

| Serial Number | 10794 |
| Stock Number | 1242 |
| Capacity (bbl) | 200 BBL |
| Diameter | 12’ |

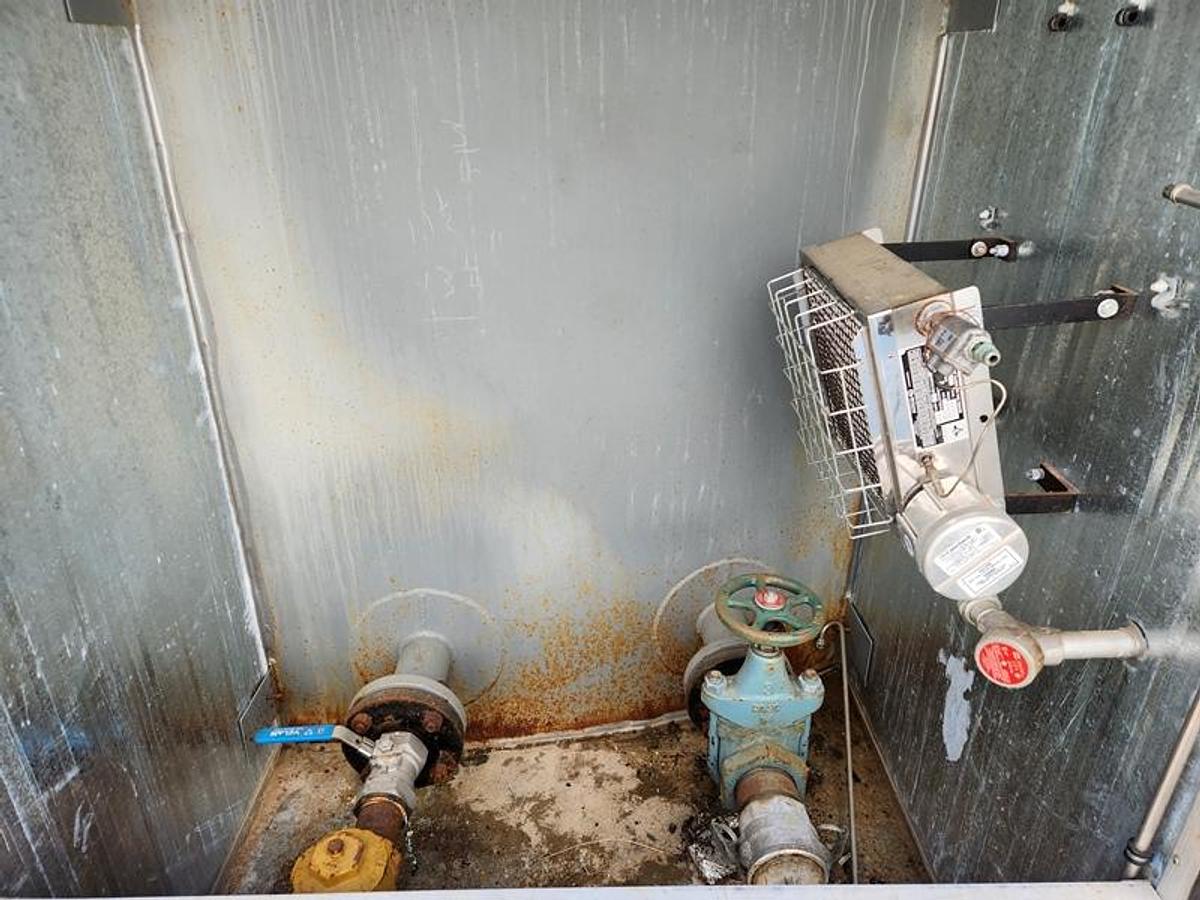

| Heat | CataDyne 12,000 BTU/Hr. Flameless Heater |
| Height | 10’ |
| Insulation | External Spray Foam Insulated |
| Level Indicator | Yes |
| Skid | Bottom Skid |
| Thief Hatch | 8” API Thief Hatch |
| Wall - Single or Double | Double |
C$21,950
