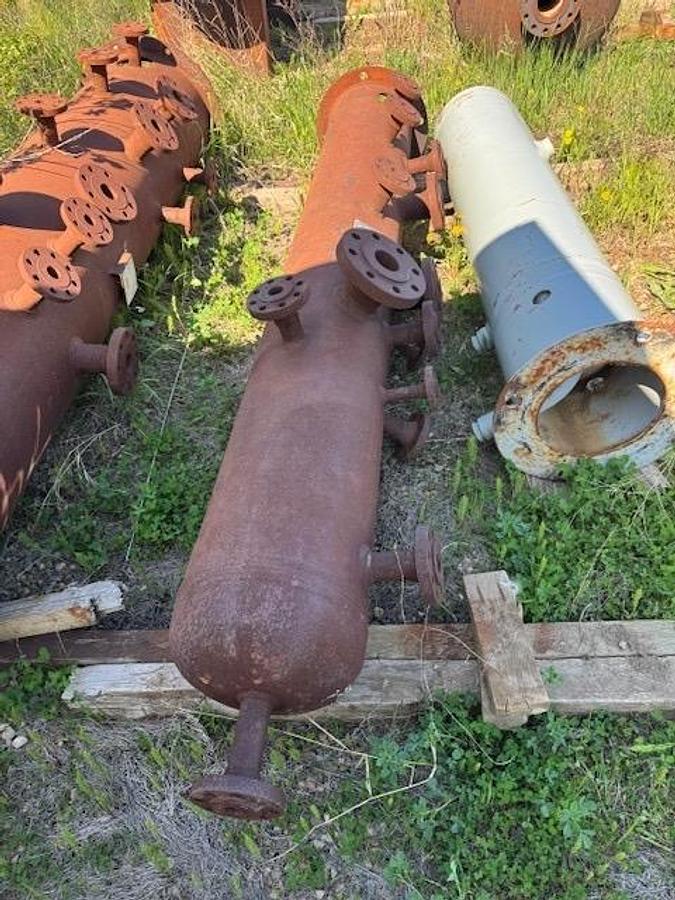

16” x 7’6” 1480 PSI Sour Separator Vessel
Location:Stettler, Canada
Description
The 16” x 7’6” Sour Separator Vessel by Panax Oil and Gas Inc. is a quality new vessel designed to handle sour service requirements efficiently. Engineered with a design pressure of 1480 PSI, a diameter of 16 inches and a length of 7 feet 6 inches. The vessel comes equipped with 2 inch 600 ANSI inlet and outlet, designed for 3-phase separation. The vessel does not come on a skid, allowing it to be customized into specific installations as needed. The vessel is registered with CRN# P5452.213, making it certified for use in AB, BC & SK
Specifications
| Manufacturer | Panax Oil and Gas Inc. |
| Year | 2014 |
| Condition | New |
| Serial Number | 27801 |
| Stock Number | 1254 |
| A# | 633658 |
| Building | None |

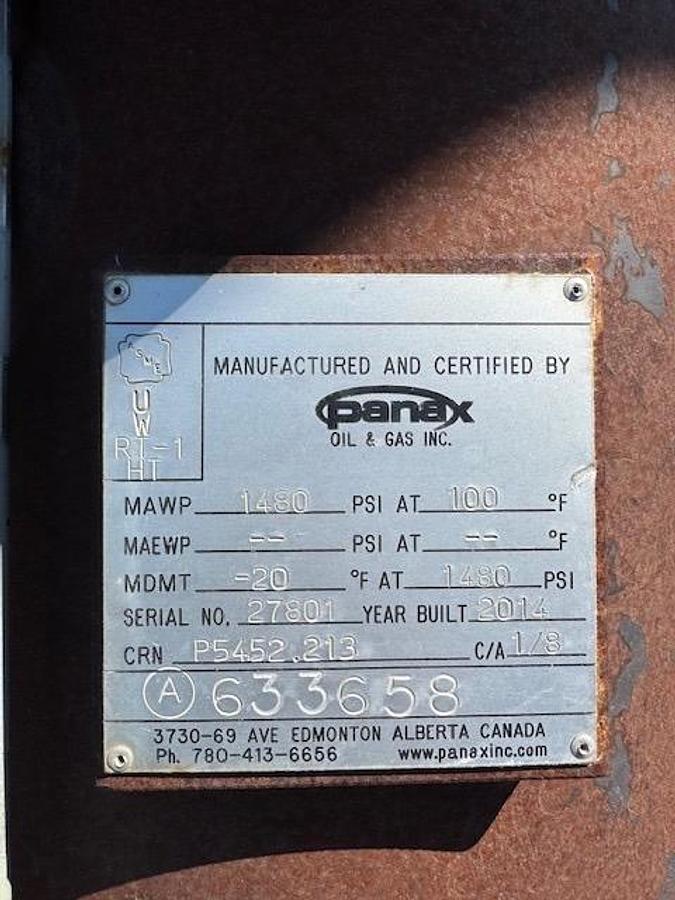

| CRN# | P5452.213 |
| Design Pressure | 1480 PSI |
| Diameter | 16” |
| H2O Details | 2” |
| Inlet | 2” 600 ANSI |
| Length | 7’ 6” |
| Orientation | Vertical |
| Outlet | 2” 600 ANSI |
| Phase | 3 Phase |
| Service | Sour |
| Skid | None |
