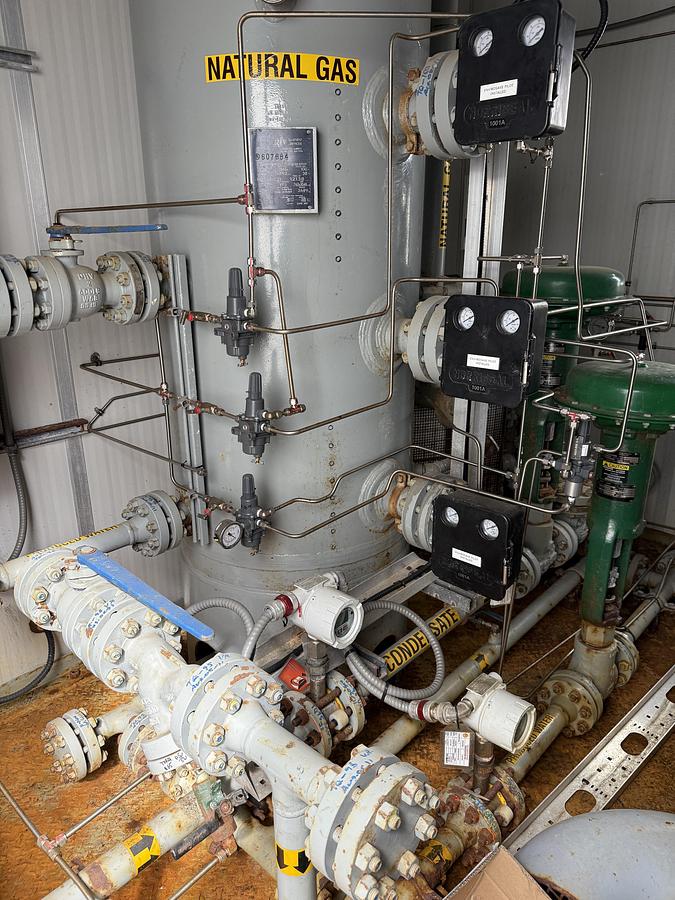

30" 1440 PSI Vertical Sour Separator Package w/Integral 400 BBL Tank
Location:Alberta, Canada
Description

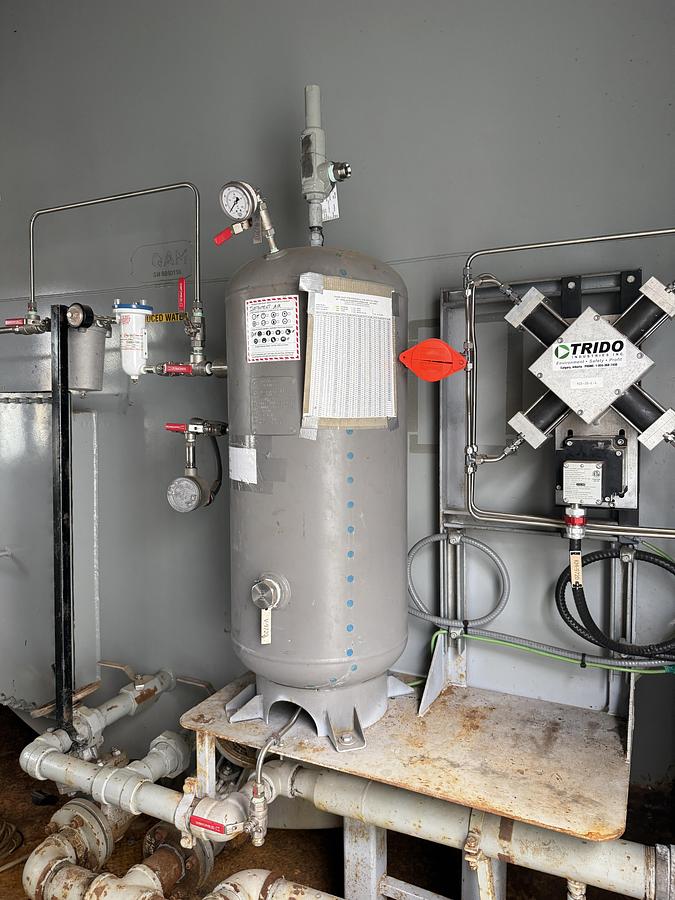

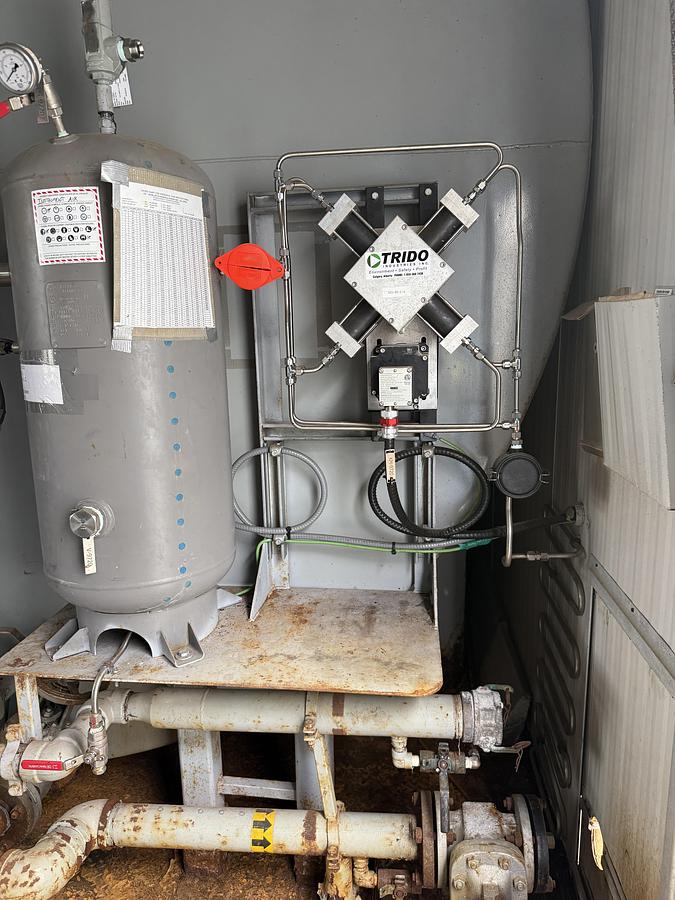

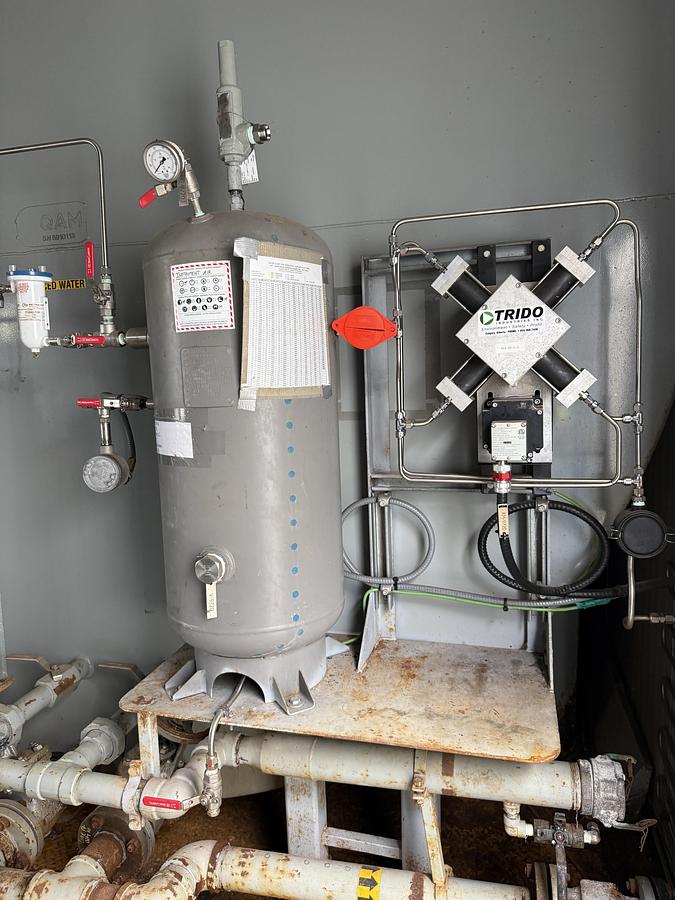

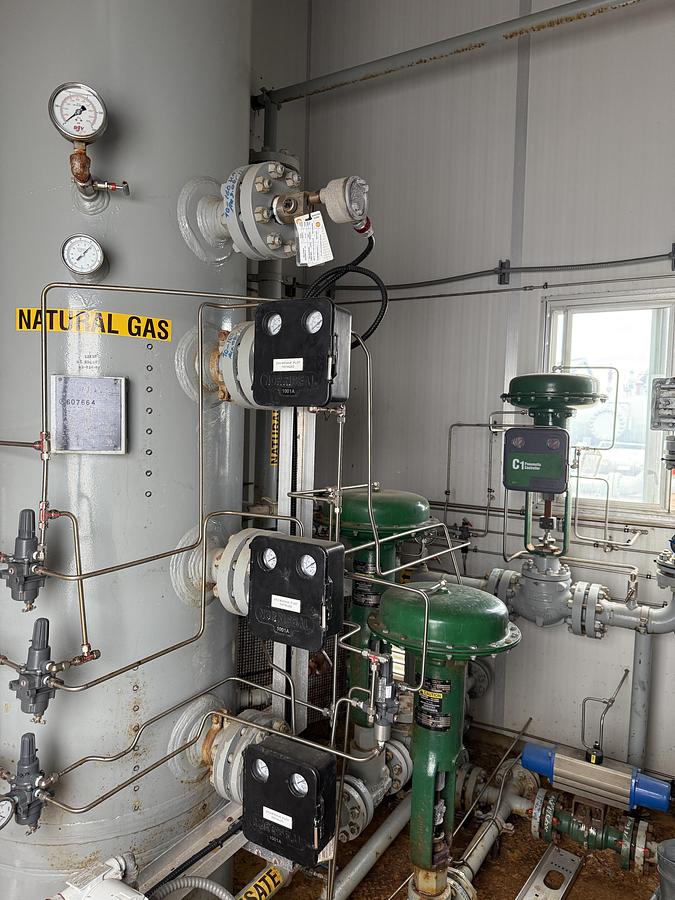

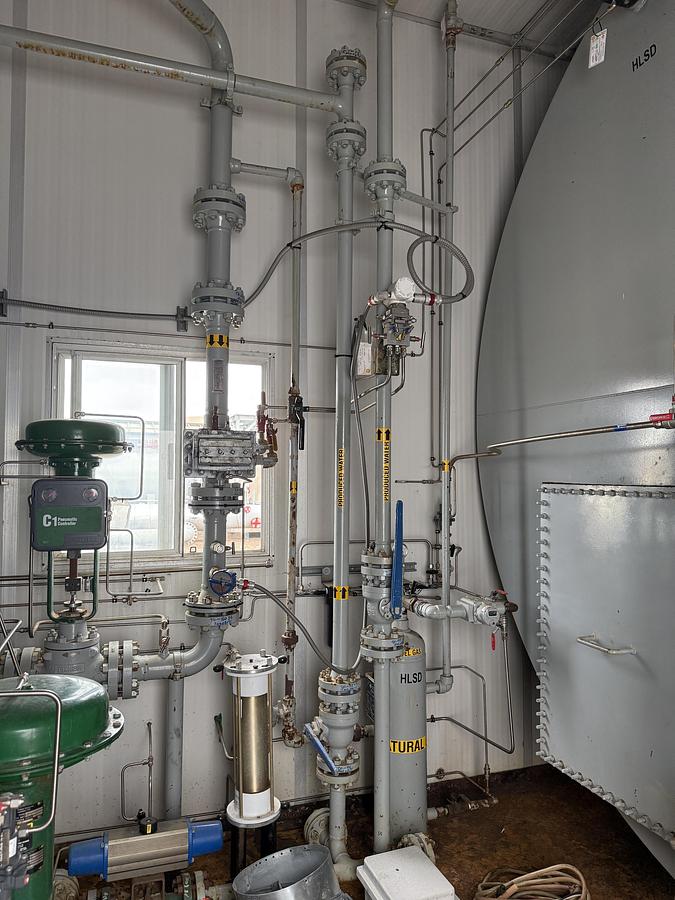

As per RJV Shop Drawing 4840 with the Addition of Trido Solar Powered Self Contained Air Compressor Excellent used 30" x 10' 1440 PSI vertical sour separator package manufactured by RJV
Designed for 3 Phase operation

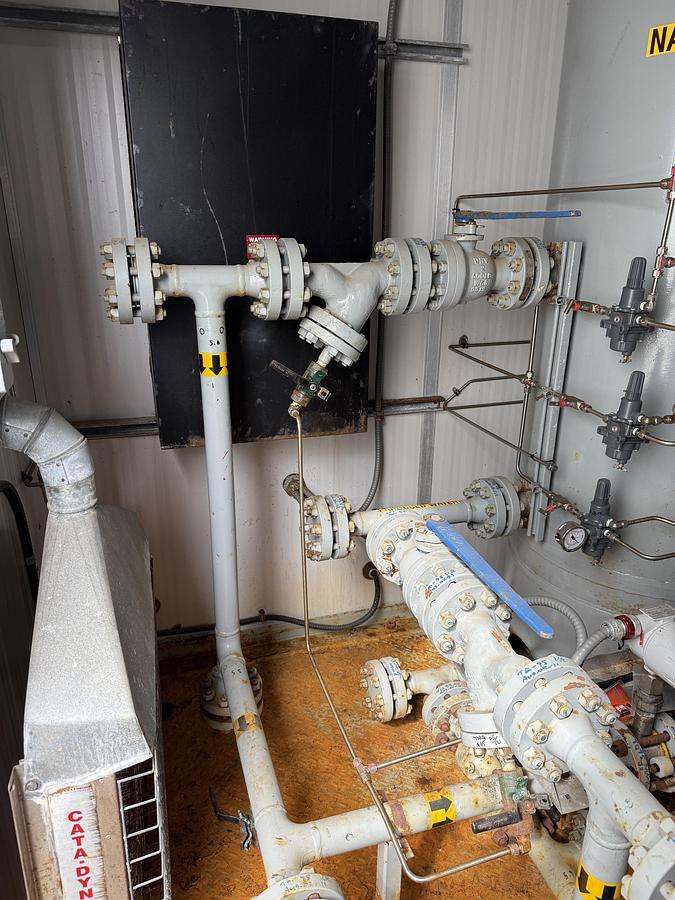

4" 600 ANSI RF inlet and outlet

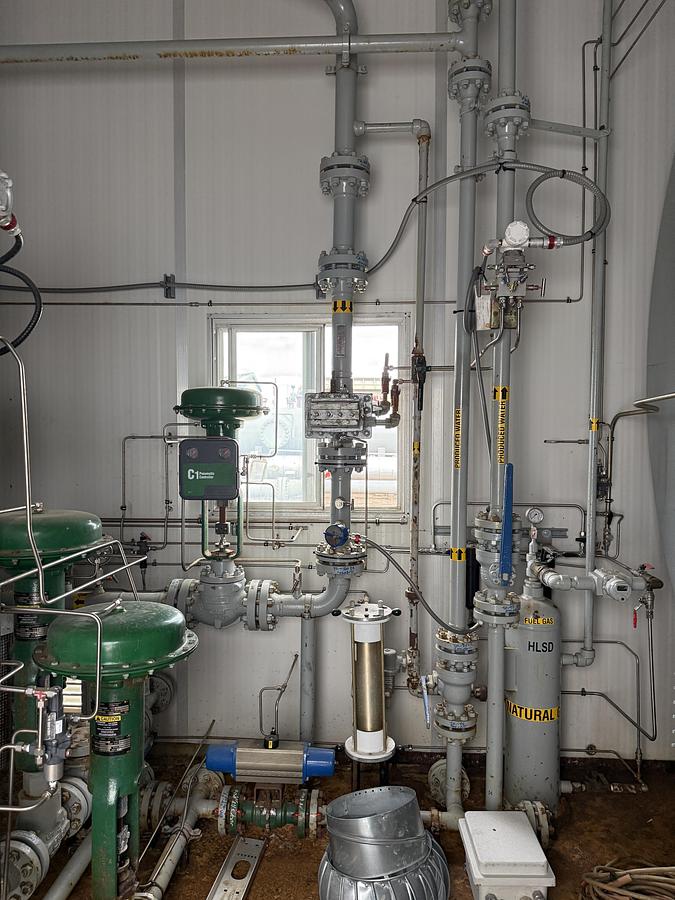

3" 600 ANSI Canalta senior meter run with a Fisher BPCV
2" 600 ANSI Condensate & H2O Outlet Lines with Y-Strainers, LCV & FQI
6" x 30" Fuel Gas Scrubber rated at 150 PSI

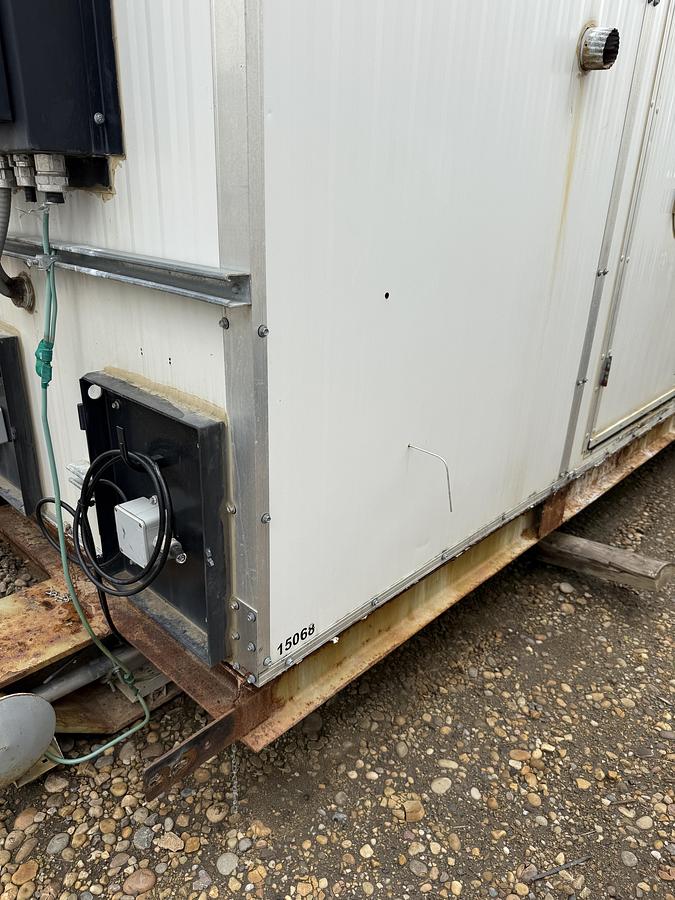

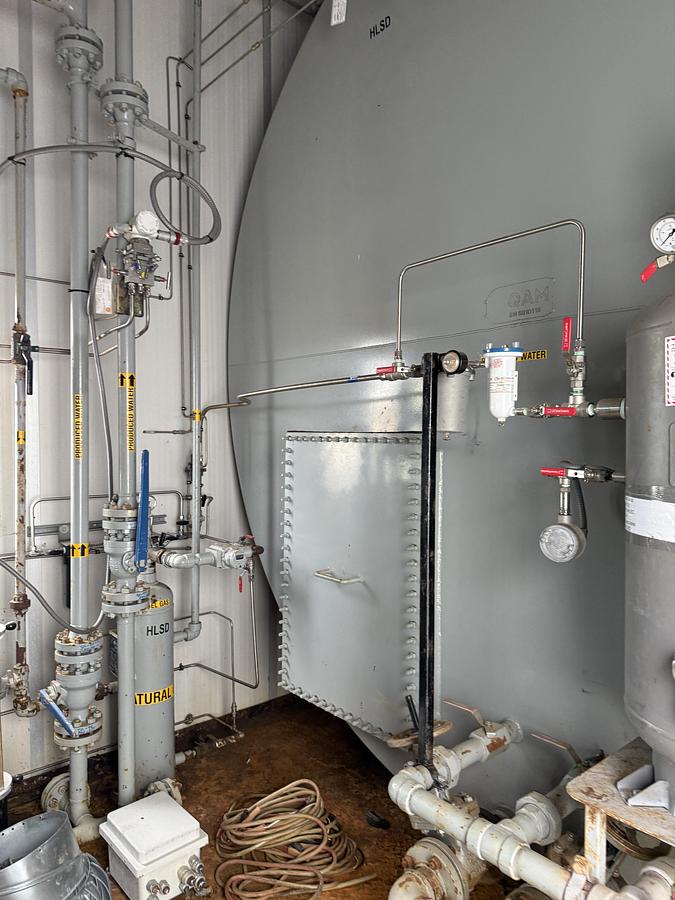

Includes an integral 400 BBL Horizontal tank. The Package is housed in a building measuring 11'6" in width, 38'6" in length, and 14'10".
Specifications

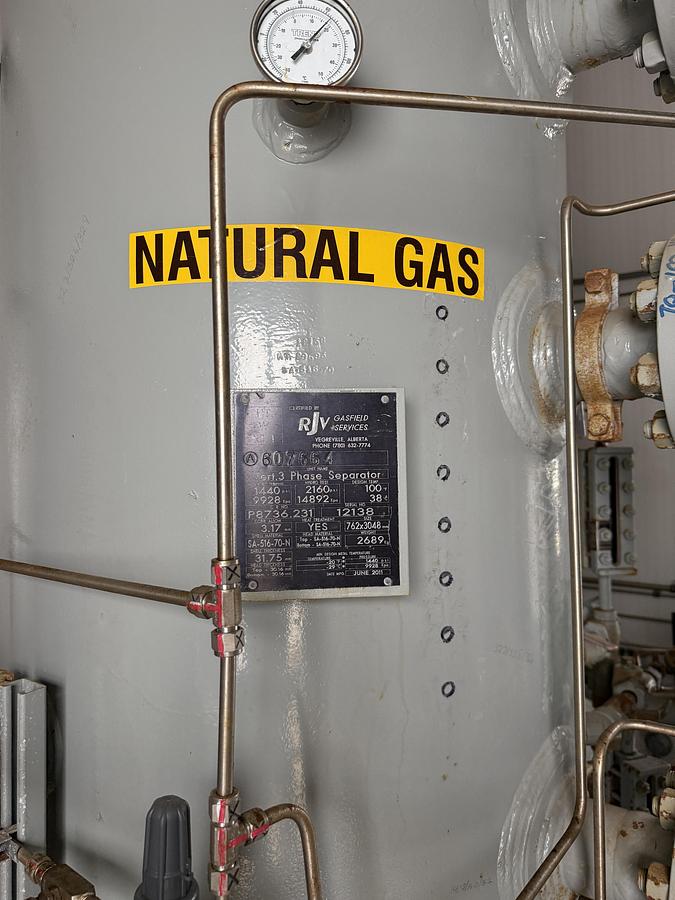

| Manufacturer | RJV |
| Year | 2011 |
| Condition | Used |
| Serial Number | 12138 |
| Stock Number | 1238 |
| A# | 607664 |
| Building | 11'6" W x 38'6" L x 14'10" H |
| Condensate Details | 2" 600 ANSI LCV w/ Liquid Meter, Y-Strainer & Prover Taps |
| CRN# | P8736.231 |
| Design Pressure | 1440 PSI |
| Diameter | 30" |
| Fuel Gas | 6" x 30" 150 PSI Fuel Gas Scrubber w/ PSV & Fuel Gas Regulator |
| H2O Details | 2" 600 ANSI LCV w/ Liquid Meter, Y-Strainer & Prover Taps |
| Inlet | 4" 600 ANSI RF |
| Length | 10' |
| Orientation | Vertical |
| Outlet | 4" 600 ANSI RF |
| Phase | 3 Phase |
| Sales Gas | 3" 600 ANSI Senior Meter Run w/3" 600 ANSI Fisher BPCV |
| Service | Sour |
| Skid | 11'6" W x 38'6" L |
C$77,500
