400 BBL Double Wall L-Skidded, Heated with Dual Caloritec Electric Pipe Inserts, Insulated & Internally Coated Tank with EnviroVault
Location:Alberta, Canada
Description
*DETAILED INSPECTION REPORT AVAILABLE

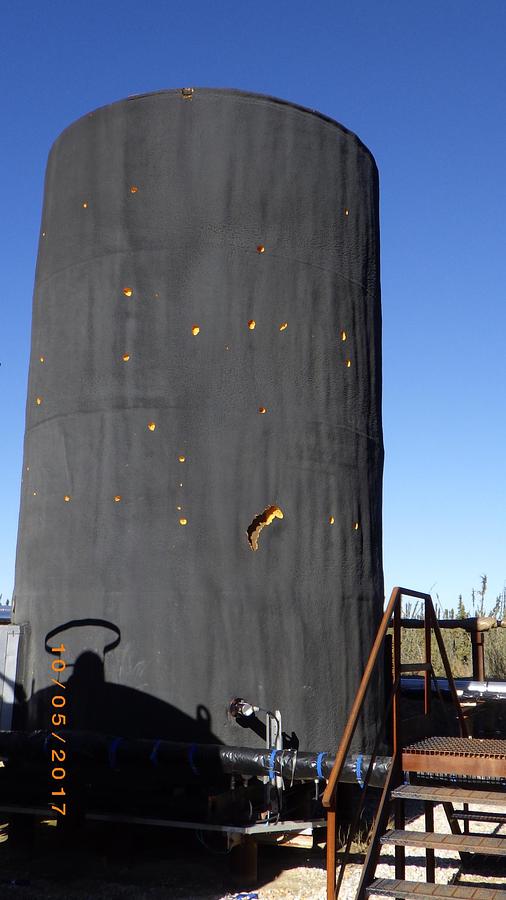

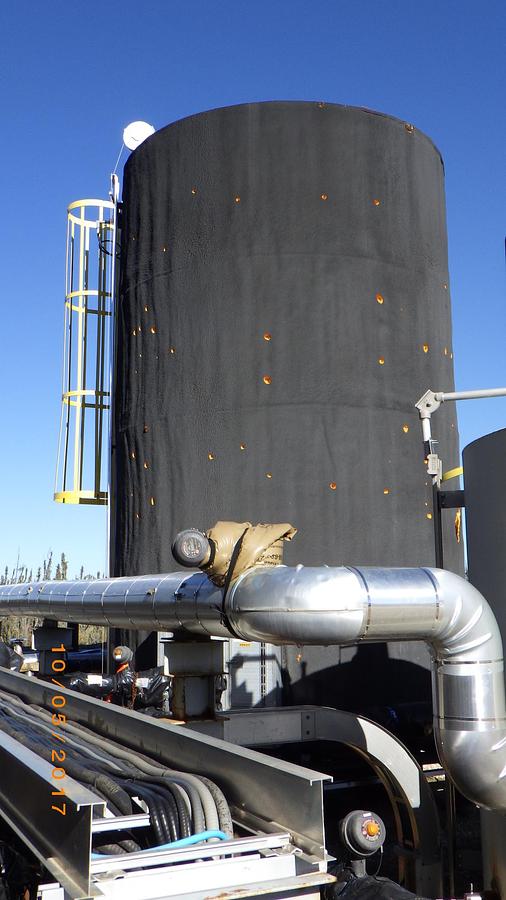

This 400 bbl tank by Bilton Welding & Manufacturing is double-wall construction with an L-skid. The interior is coated with Devoe 253/Devoe 253HS for corrosion resistance, while 2" thick spray foam insulation, sealed with black elastomeric, ensures excellent temperature retention.

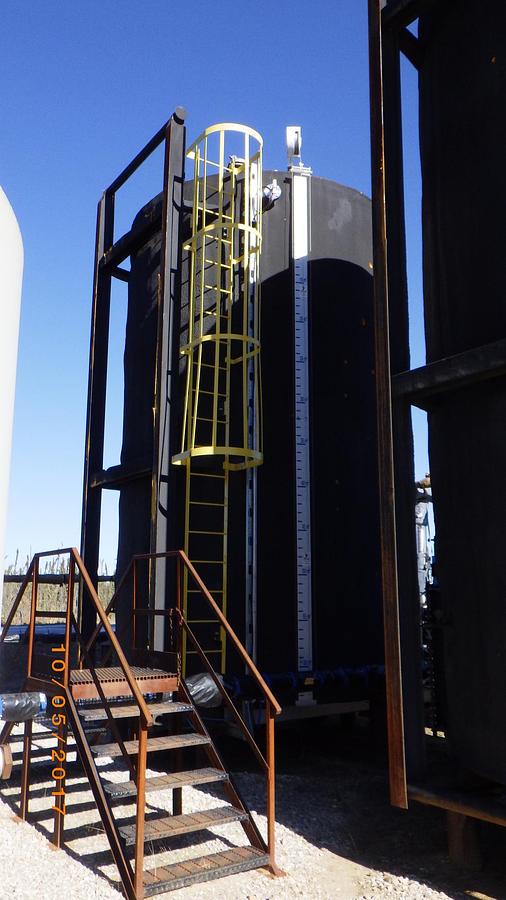

The tank is equipped with Caloritec KW and a 4KW electric heaters, both operating at 480V/3PH, and controlled by remote mount thermostats to maintain the desired temperature. A Hawkeye Redtail Liquid Level Gauge provides reliable level monitoring, and an 8" Enardo 660PT Sour Thief Hatch allows for efficient pressure management with settings at 16 oz. press and 0.4 oz. VAC.
Overall, this tank combines advanced features making it a practical choice for various applications requiring heated and insulated storage solutions. Its dimensions of 11'10" diameter and 20' height accommodate significant storage capacity while maintaining a compact footprint.
Specifications

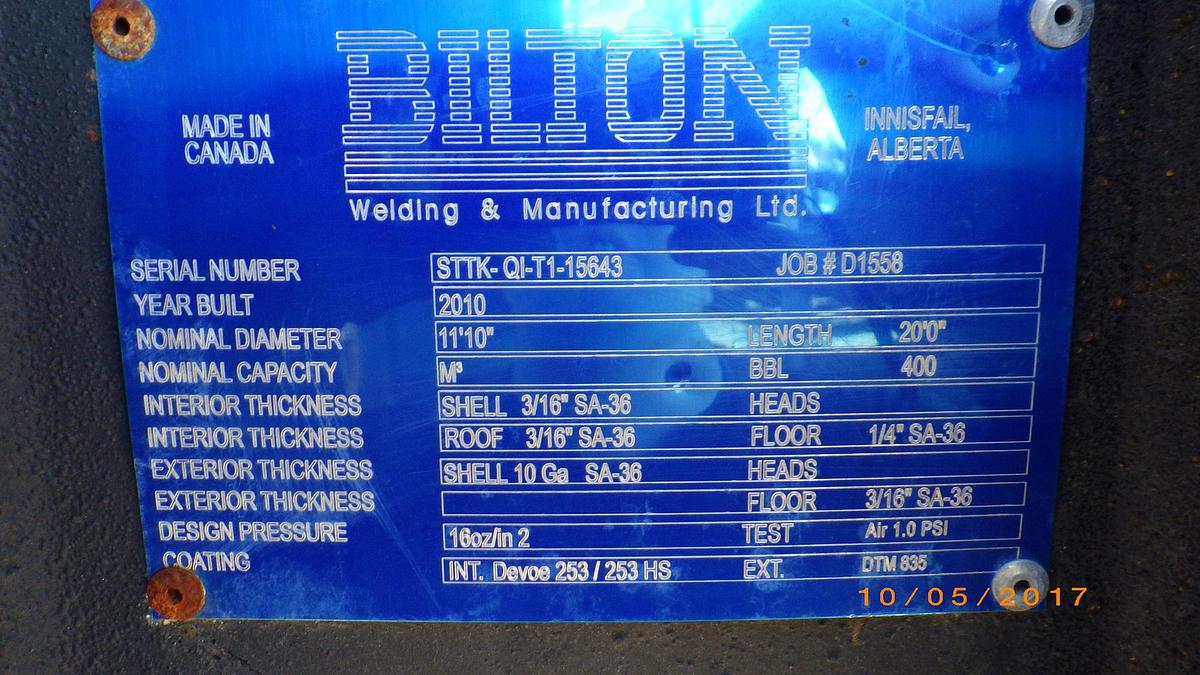

| Manufacturer | Bilton Welding & Manufacturing |
| Year | 2010 |
| Condition | Used |
| Serial Number | Q1-T1-15643 |
| Stock Number | 1257 |
| Capacity (bbl) | 400 |
| Coating | Devoe 253/Devoe 253 HS Internal Coating |
| Design Pressure | 16 oz. |
| Diameter | 11'10" |
| Heat | Caloritec 5KW 480V/3PH Pipe Insert Heater Model MXIT305F3-00X & Caloritec 4KW 480V/3PH Pipe Insert Heater Model MXIT304F3-00X both with Remote Mount Thermostats |
| Height | 20' |
| Insulation | 2" Thick Spray Foam w/Black Elastomeric Sealer |
| Level Indicator | Hawkeye Redtail Liquid Level Gauge (SOUR) |

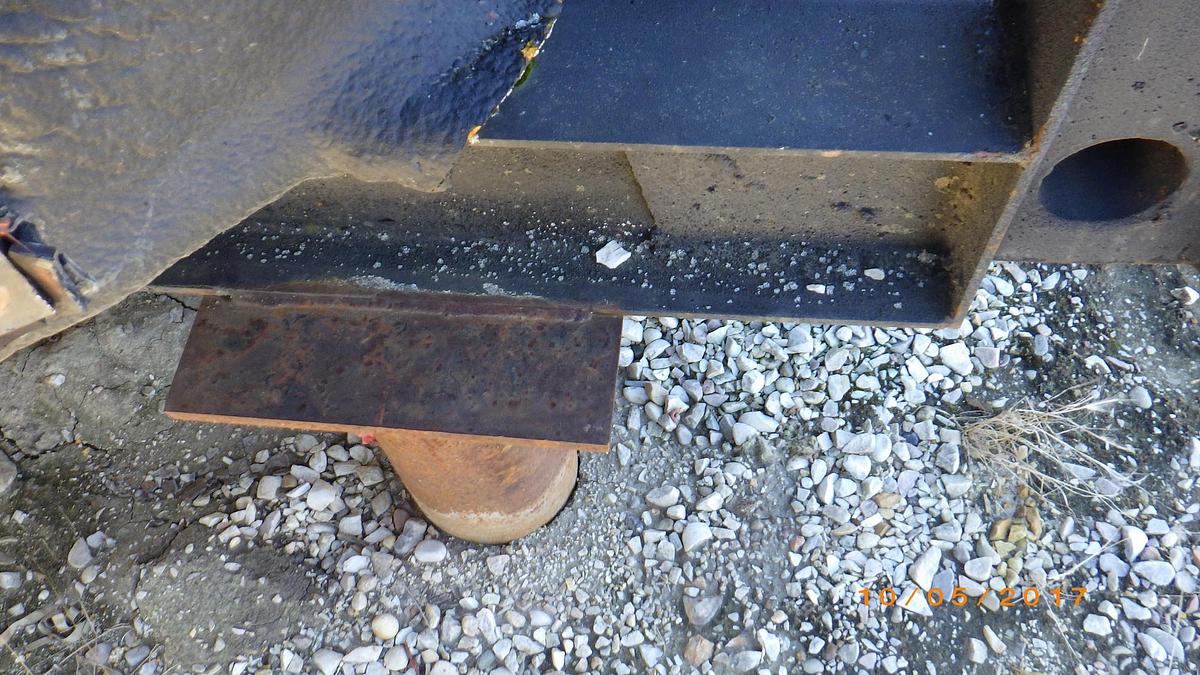

| Skid | L-Skid |
| Thief Hatch | 8" Enardo 660PT Sour Thief Hatch (set 16oz. press, 0.4oz VAC) |
| Wall - Single or Double | Double |
